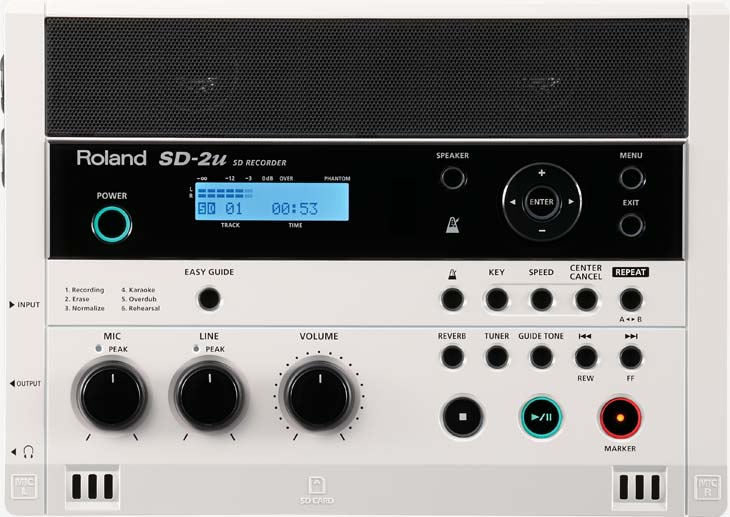

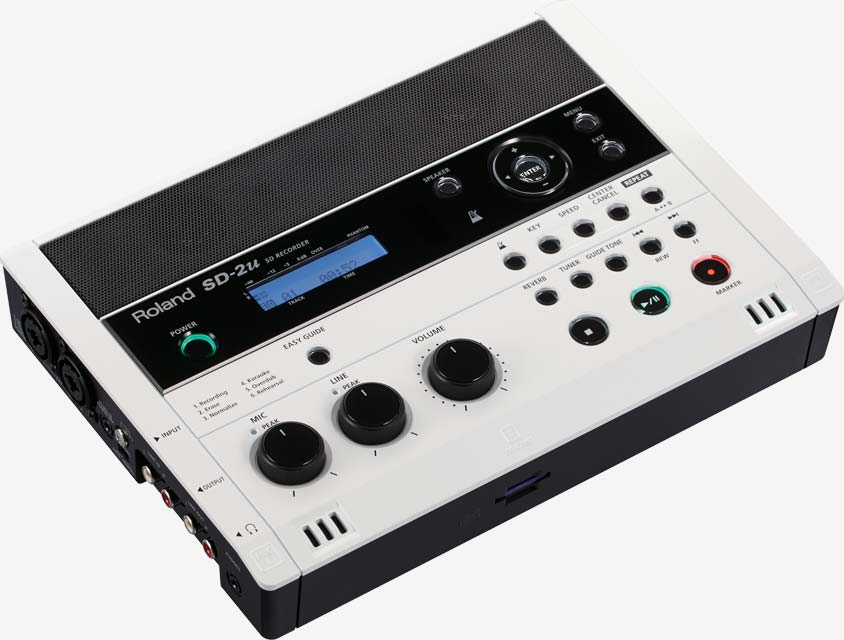

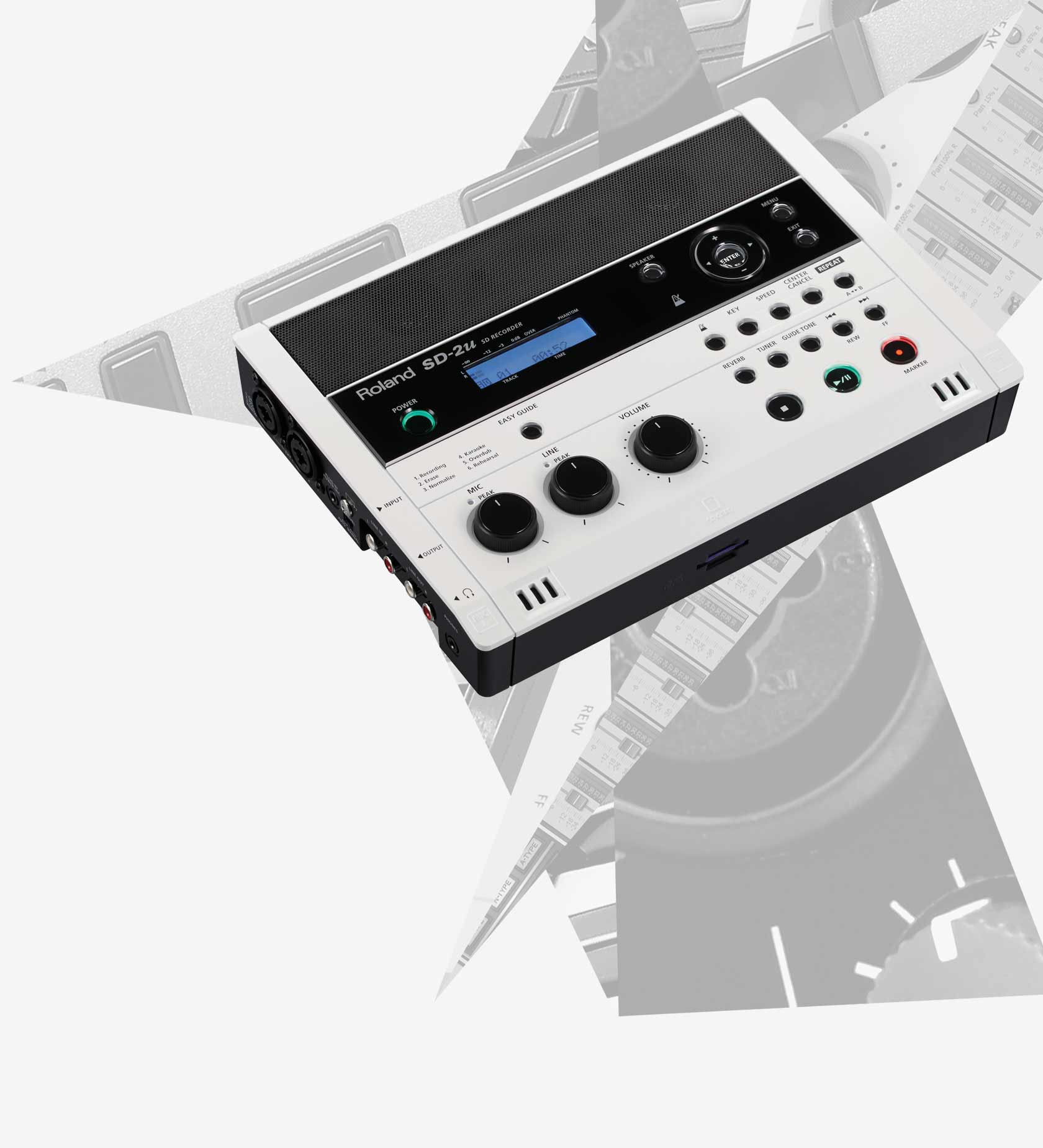

SD-2u

SD Recorder

SD-2u
Discontinued

Your Go-Everywhere Companion for Recording, Music Practice, and Education

With high-quality SD recording and a host of great features for music practice and study, the SD-2u Recorder is a powerful tool for educators, students, and hobbyists. A built-in stereo mic lets you capture audio anywhere, while versatile audio input options allow you to connect your own external mics, electronic musical instruments, and other devices with pro-level results. Also onboard are many training essentials, including high-fidelity key and speed adjustment, improved Center Cancel for creating minus-one tracks, and the all-new Center Focus for isolating vocals and instruments. Compact and ready to travel, the SD-2u is the ideal all-in-one solution for audio recording, learning music and languages, and much more.

All-In-One Convenience

With its portable size and ability to run on battery power, the SD-2u is ready to travel anywhere, giving you high-quality recording and editing in one standalone unit. The built-in stereo mic makes audio capture easy, while high-performance stereo speakers provide convenient sound playback of your recordings, WAV music files, lesson material, and more.

Hi-Res Recording, Intuitive Operation

The SD-2u records CD-quality audio direct to widely available SD/SDHC memory cards. It’s also super-simple for anyone to operate thanks to the Easy Guide feature, which provides clear onscreen instructions that guide you through various operations. Easy Guide covers recording and overdubbing functions, creating minus-one tracks for practice and karaoke, setting proper input levels, and more. You can even choose among six different languages for the display: English, German, French, Italian, Spanish, or Japanese.

Connect External Mics and Other Devices

While it’s designed for pro results as a standalone unit, the SD-2u also provides connections for integrating external devices to suit various applications. Two XLR/TRS combo jacks allow you to connect your own mics (with phantom power available if needed), including a stereo field-recording mic such as the CS-15RS. There’s also a stereo mini-mic jack with Plug In Power, plus stereo RCA LINE IN jacks for connecting an instrument, music player, or another audio source.

Essential Training Tools

The SD-2u is equipped with powerful features for manipulating audio playback, providing useful tools for building music skills, learning languages, transcribing spoken-word audio, and more. You can independently adjust the speed and key with exceptional audio quality, perfect for slowing down passages to learn difficult parts or changing the key of music to suit your voice. Use A-B Repeat to play audio sections over and over, and turn on Center Cancel to create minus-one tracks for practice and karaoke fun. There’s also a newly developed Center Focus feature, which isolates center-located sounds in music tracks to make them easier to hear and learn.

Carrying Case and More

The optional CB-CD2E Carrying Case gives you durable protection while transporting the SD-2u, plus handy storage pockets for accessories like batteries, extra SD cards, the AC adaptor, and the remote control. If you’re looking for similar features in a device that can also play and burn CDs, check out the SD-2u’s cousin, the CD-2u SD/CD Recorder.

Recorder Part
Tracks
2 tracks (stereo)
Sampling Frequency
44.1 kHz
Signal Processing
AD/DA conversion: 24 bits
Recording Mode
SD/SDHC Memory Card: WAV (44.1 kHz, 16 bits)
Recording Media
SD Memory Card (supports 512 MB to 2 GB)
SDHC Memory Card (supports 4 GB to 16 GB)
Recording Time (unit: min)
SD Memory Card
512 MB: 47
1 GB: 94
2 GB: 189

SDHC Memory Card
4 GB: 377
8 GB: 755
16 GB: 1511

* Each recording time is approximate. The times may change depending on the card specifications.
* In case that there are plural files, the sum of recording time would be shorter than above.
* Maximum recording time of one song is 74 minutes.
Recording Songs
Up to 99 songs on a single SD/SDHC Memory Card
Input/Output
Audio Input
Internal Stereo Microphones
EXT MIC (L, R) jacks: XLR type (balanced/phantom power DC 48 V, 8 mA Max.), 1/4-inch TRS phone type (balanced/unbalanced)
PLUG IN POWER MIC jack: Stereo miniature phone type
LINE IN (L, R) jacks: RCA phono type
Audio Output
Internal Speakers: Stereo
LINE OUT (L, R) jacks: RCA phono type
PHONES jack: Stereo miniature phone type
Frequency Response
20 Hz to 20 kHz (+0 dB/-2 dB)
Nominal Input Level (variable)
EXT MIC (L, R) jacks: -51 to -8 dBu (common to XLR type and 1/4-inch phone type)
PLUG IN POWER MIC jack: -51 to -13 dBu
LINE IN (L, R) jacks: -24 to -4 dBu
Nominal Output Level
LINE OUT (L, R) jacks: -4 dBu
Input Impedance
EXT MIC (L, R) jacks: 8 k ohms (common to XLR type and 1/4-inch phone type)
PLUG IN POWER MIC jack : 10 k ohms
LINE IN (L, R) jacks: 28 k ohms
Output Impedance
LINE OUT (L, R) jacks: 1 k ohm
PHONES jack: 32 ohms
Other
Display
16 characters, 2 lines (backlit LCD)
Power Supply
AC adaptor
Alkaline battery (AA, LR6) x 6
Rechargeable Ni-MH battery (HR6) x 6
Current Draw
700 mA

* Expected battery life under continuous use
Alkaline battery (AA, LR6): Approx. 5.5 hours
Rechargeable Ni-MH battery (AA, HR6): Approx. 6 hours
The time may vary according to usage conditions, batteries used, and type of SD memory card used.
Accessories
Owner's Manual
Quick Start
Remote controller (with battery CR2025)
AC adaptor
Power cord
SD memory card
SD card protector
Options (sold separately)
Carrying Case: CB-CD2E
Stereo Microphone: CS-15RS
Stand: SS-PC1
Size and Weight (excluding batteries and AC adaptor)
Width
278 mm
11 inches
Depth
196 mm
7-3/4 inches
Height
55 mm
2-3/16 inches
Weight
1.1 kg
2 lbs. 7 oz.
* 0 dBu = 0.775 Vrms
